Optimized
Tool Carrier
Designed with
YOU in Mind

View Literature View Mantis in Action

Tackle any job with the Mantis Prime Mover.

Safety
The Mantis is designed with safety in mind. A full-visibility cab allows you to see your work from any angle. A rear-view camera and backup alarm makes reversing simple.

Compatibility
As an optimized tool carrier, the Mantis is designed with the space claim for various attachments. The Mantis has the ability to operate front, side, and rear mount attachments.

Maneuverability
With the ability to rotate the cab 90 degrees in either direction and crab steer, the Mantis gives you full visibility and maneuverability no matter where you are.

Transportation
Unlike traditional tractors with boom mowers, the Mantis has a standard transport width of 102” which means it can be operated on all roadways.

Safety

  • Protective structure meets ISO 8082 Roll-Over Protective Structures (ROPS)
  • Cab size configured for ISO 3477 (operator space requirements)
  • Polycarbonate windshield option
  • Safety Lighting

Technology

  • 12" high-visibility touch screen
  • Fully User Configurable CAN-bus controls & operator interface
  • Rear-view camera
  • Backup Alarm
  • Bluetooth Stereo with Microphone
  • Mower Indicators
  • Inching/Brake Pedal
  • Steering Wheel
  • Left Hand-Operated Direction Control
  • Speedometer
  • Convenience Outlets

Options

  • Light Bar (DOT spec).
  • Front and/or rear PTOs with hydraulic remote options
  • Rear drawbar hitch with 6,000 lbs towing capacity
  • 90° rotating cab (either direction) capability
  • Hi-flow front hydraulic circuit
  • DOT trailer lighting (front and rear) connector
  • Front CAT II three-point-hitch with 4500 lb. capacity
  • Front skid-steer hitch
  • Skid-steer (front) electrical connector

Comfort

  • Pressurized filtered air HVAC system
  • High-quality air ride seat with arm rests
  • Training Seat
  • Cup Holder
  • Personal Storage Compartments

Boom Mower Options

  • Boom reach of either 24' or 30' from center of the machine to the edge of cut.
  • A swing back breakaway feature.
  • Capable of mowing within 6" of tires.
  • Capable of mowing 45° downward slope.
  • Head options:
    • 22" Ditch Renovator
    • 48" Brush Cutting Flail
    • 60" HD Grass Flail
    • 50" SD Rotary Head
    • 60" SD Rotary Head
    • 50" Mulching Head
    • 69" Buzz Bar Saw Head
    • 90" Buzz Bar Saw Head

Flail Mower Option

  • Flail mower option with center deck out front.
  • Hydraulic float functions allow the mowers to follow the ground elevations.
  • The mowing heights are adjustable between 1” – 9”

Technical Data

  • Rotating Cabin - Optional
  • Joystick - Electronic 3-Axis
  • Transmission - Hydrostatic
  • Traction - 4x4
  • Transport Speed - 25 MPH
  • Working Speed - 0.1 - 8 MPH
  • Base machine weight without attachments - 16,880 lbs
  • Maximum Attachment Weight - 12,000 lbs

Engine Technical Data

  • Brand - Deutz 5.2L
  • Model - Tier IV/Stage V turbocharged diesel engine
  • Power - 155HP or 201HP
  • Fuel Tank Capacity - 50 gal
  • DEF Tank Capacity - 5 gal
  • Alternator - 220A
  • Fan - FLEXXAIRE Reversible Self-cleaning

Any Direction, Any Time

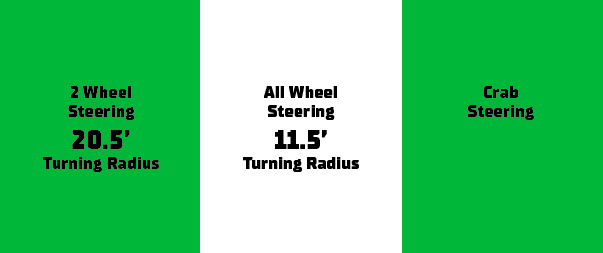

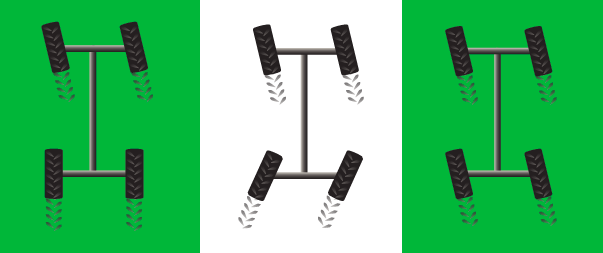

Steering / Wheel Options

Two- and Four-wheel automatic-synchronizing steering with CRAB steer option. Two speed gearing provides 100% torque increase for rough terrain. 100% locking front and rear differentials. Solid steerable axles, rear axle pivoting and fixed front axle.
